Series 6000

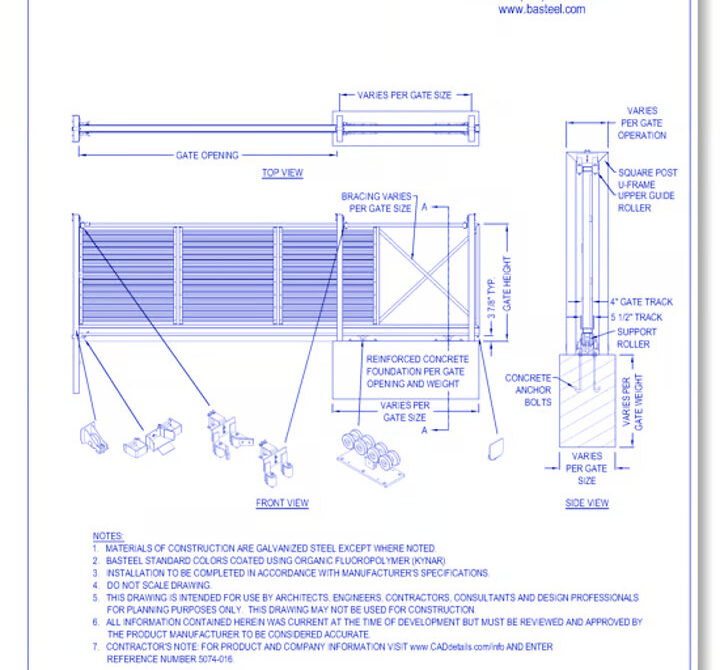

Infinity Series 6000 Cantilever Gates by BASTEEL Perimeter Systems feature mono-bloc carriage trolleys with 8 sealed ball bearing rollers, 6″ wide galvanized steel bottom track, side-pass upper guide system with sealed bearing rollers, and 1″ diameter stainless steel cane rods (manually operated models). The carriage trolleys are mounted to anchor bolts that are embedded into a reinforced concrete foundation, designed by BASTEEL per site, utilizing an innovative cast-in-place anchor template. Infinity Series 6000 cantilever gates are compatible with all styles of operators and access controls. Infinity Gates by BASTEEL Perimeter Systems are manufactured using galvanized 2″ x 4″ tubing with mitered corners and diagonal bracing, welded using silicon-bronze welding wire to inhibit rust. BASTEEL then applies a thermos-cured paint system with an organic fluoropolymer (KYNAR 500) top coat that will resist fading, chalking and peeling for decades to come. All Infinity gates are available with any of BASTEEL’s stock infill options.
