Infinity Gates
Double Swing
A classic design that delivers timeless beauty,
strength, and security.

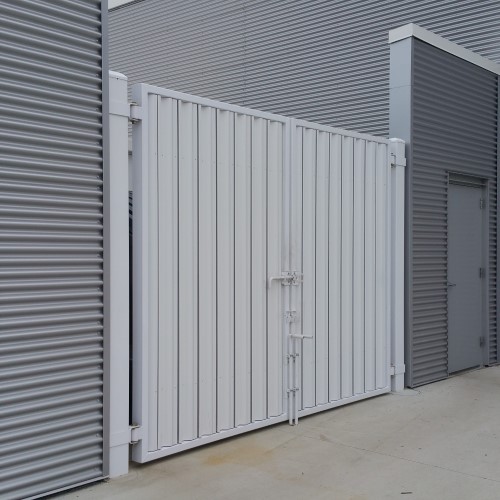

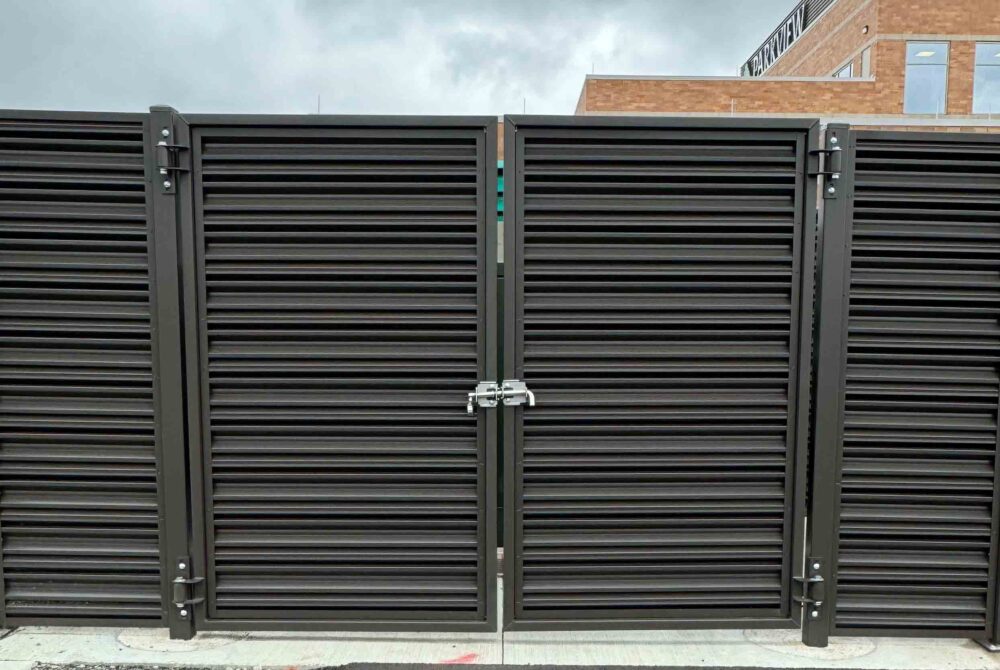

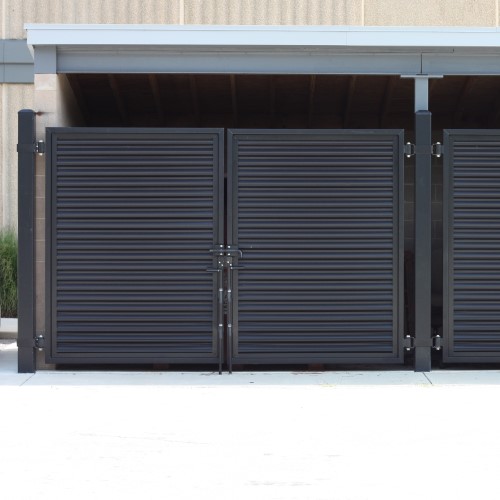

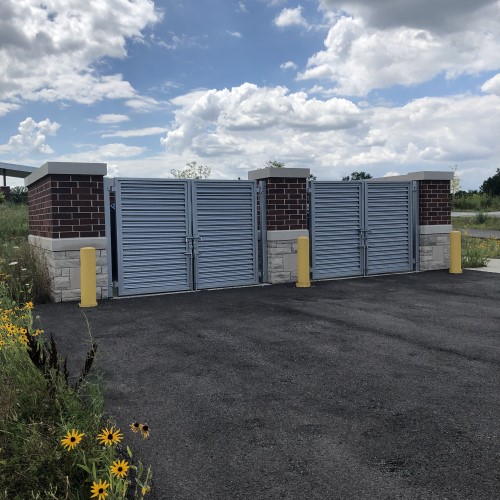

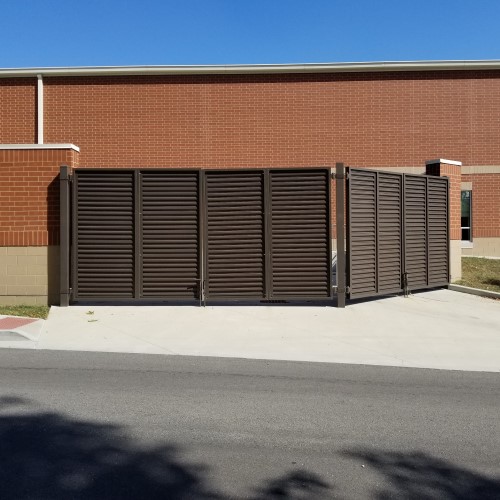

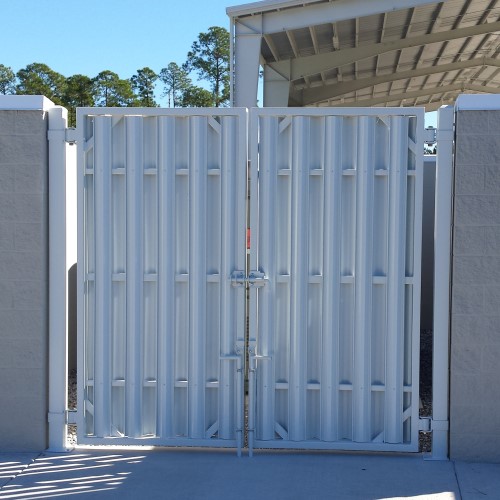

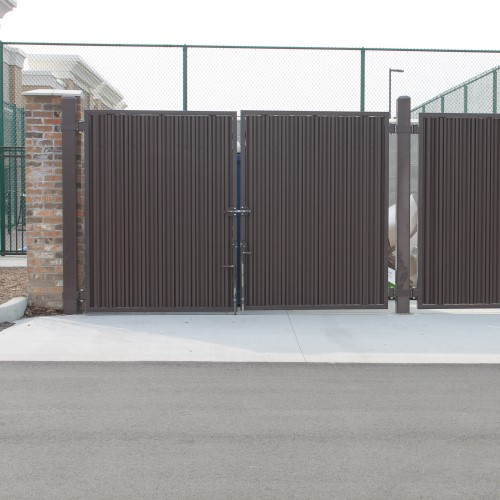

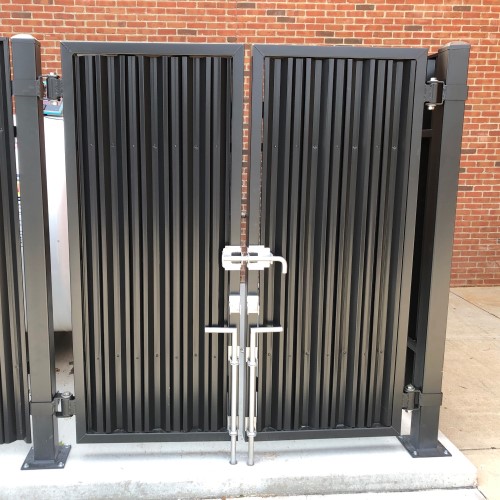

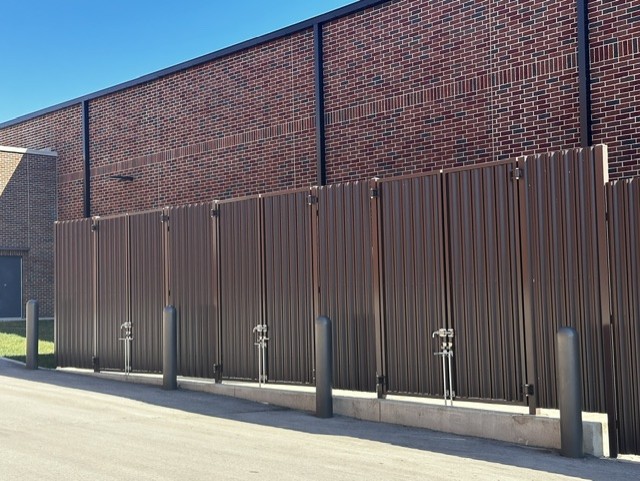

Infinity Double Swing Gates by BASTEEL Perimeter Systems feature precision ground, double-sealed ball bearing hinges, 1” diameter stainless steel cane rods, and a lockable 1” diameter solid stainless steel slide bolt. The hinges are attached to the posts using stainless steel straps that allow for adjustment in the field. Infinity Swing gates are also available with wall mount hinges to attach to existing structures.
Infinity Gates by BASTEEL Perimeter Systems are manufactured using galvanized 2” x 4” tubing with mitered corners and gusset bracing, welded using silicon-bronze welding wire to inhibit rust. BASTEEL then applies a thermos-cured paint system with an organic fluoropolymer (KYNAR 500) top coat that will resist fading, chalking and peeling for decades to come. All Infinity gates are available with any of BASTEEL’s stock infill options.
Timeless Design
Traditional finishes and sculpted rails.
Engineered Strength
Built for security and long-term performance.
Custom Heights
Available in multiple heights and configurations.
Made in USA
Proudly manufactured in America.
KYNAR 500® STANDARD COLOR OPTIONS
Downloads

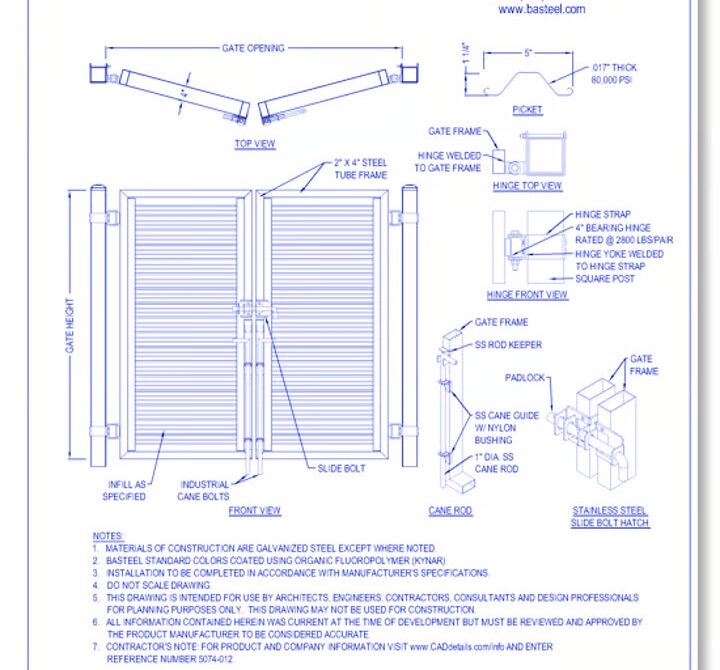

Cut Sheet
Download the Double Swing cut sheet PDF.
Specifications
Detailed specifications and product dimensions.
